Clarity That Holds Up After Dark.
H215BL thermal imaging detects the heat that living things and objects give off, turning it into a clear image — even in pitch-black nights, drifting smoke or heavy weather. No illumination required.
Let More Light In
- A 256×192, 12μm VOx sensor with ≤45mK NETD picks up fine temperature differences that lesser sensors miss.
- The F1.0, 15mm lens paired with an 11.69° × 8.78° field of view captures more infrared energy for a brighter, wider picture.
Enhanced by AI
AI Super Resolution and Digital Detail Enhancement sharpen edges and reduce noise in real time.
Know How Far, Not Just What's There.
Press the dedicated ranging button for an instant readout — up to 600m with ±1m accuracy. Switch to continuous mode to track distance in real time as your subject moves.
Stay Oriented. Stay Focused.
Beyond distance measurement, the H215BL tracks your orientation, highlights heat sources automatically, and lets you zoom without losing the bigger picture.
LIVE ORIENTATION

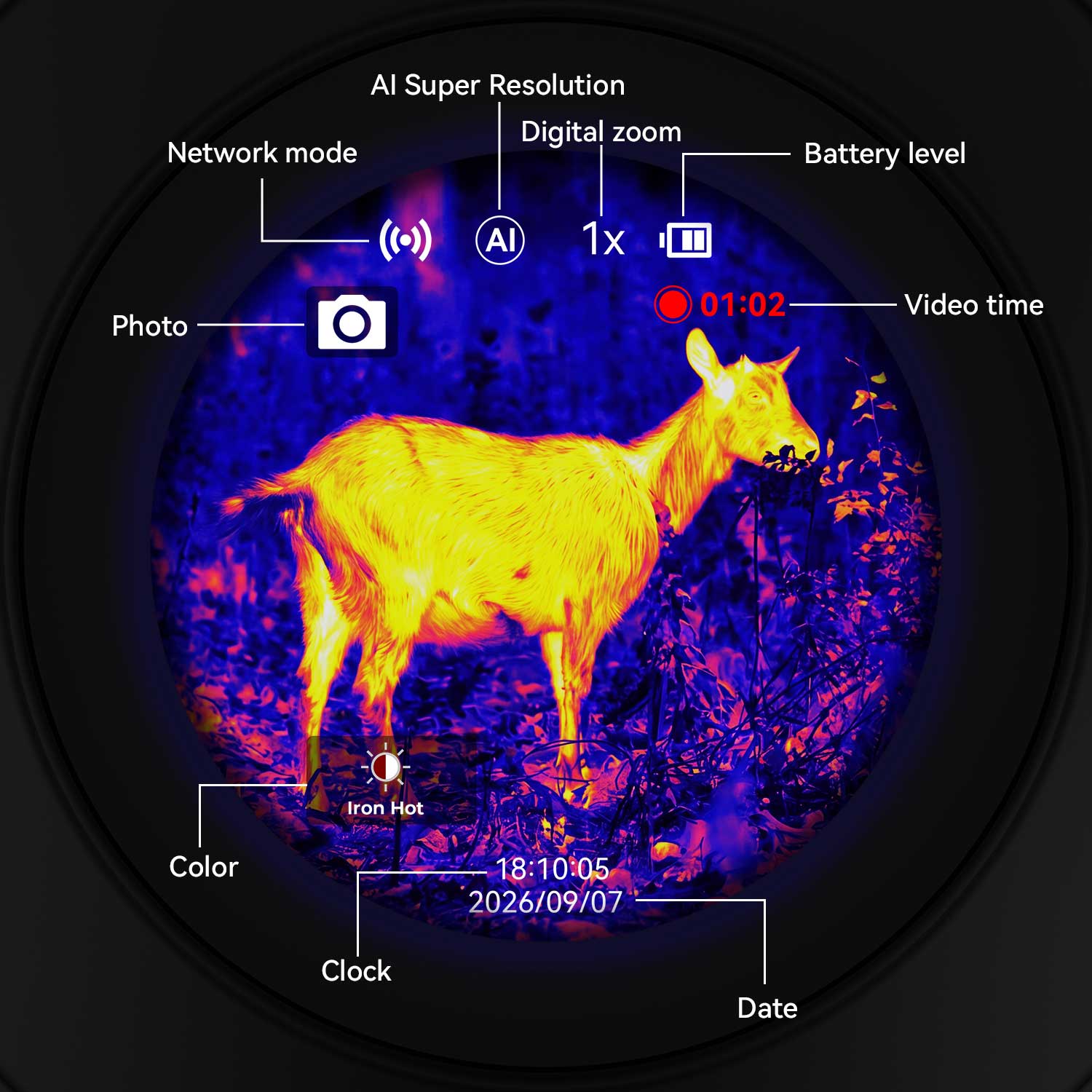

Attitude & Compass Display
AUTO-DETECT
Hotspot Tracking
1–8× DIGITAL ZOOM
Picture-in-Picture Zoom
Meet Your Observation Needs Anytime, Anywhere
With 6 versatile application modes and 5 selectable color palettes, you can enjoy clear, detailed thermal views across a wide range of environments and conditions.
Perfect for observing birds from a distance, even in dense foliage or low-light conditions such as dusk, where traditional optics may struggle to deliver clear visibility.
For everyday use, providing balanced thermal imaging in a wide variety of situations, from outdoor adventures to casual observation.
Ideal for urban environments, this mode helps you distinguish heat sources among buildings and cityscapes, great for security or search-and-rescue operations.
Highlights the outlines of heat sources against the background for quick identification, making it perfect for navigation or locating people in low visibility conditions.
Designed specifically for dense, humid environments where thermal imaging may be obscured by moisture or foliage. This mode ensures the best performance even in the toughest conditions.
Tailored for dense woods and forested areas, where terrain and foliage can obscure visibility, Forest Mode enhances contrast to reveal hidden details and ensure clearer observation.
5 color modes
White Hot
Ideal for general use, providing maximum contrast for identifying people or animals.
Black Hot
This mode is useful for seeing thermal details in bright conditions or at night.
Iron Hot
Ideal for seeing extreme temperature variations in industrial or search-and-rescue scenarios.
Green Hot
Perfect for those who prefer a more natural thermal view with less intensity.
Red Hot
This mode is excellent for quickly distinguishing heat sources in low-light or high-contrast environments.
Runs All Night. Saves Everything.
A 4000mAh battery keeps you out for up to 10 hours. Save photos and video to 32GB of built-in storage, connect over Wi-Fi to export files, or output live video via CVBS to an external display.
iOS and Android APP
H215BL Thermal Monocular Specifications
3.7V 4000mAh Rechargeable Lithium Battery

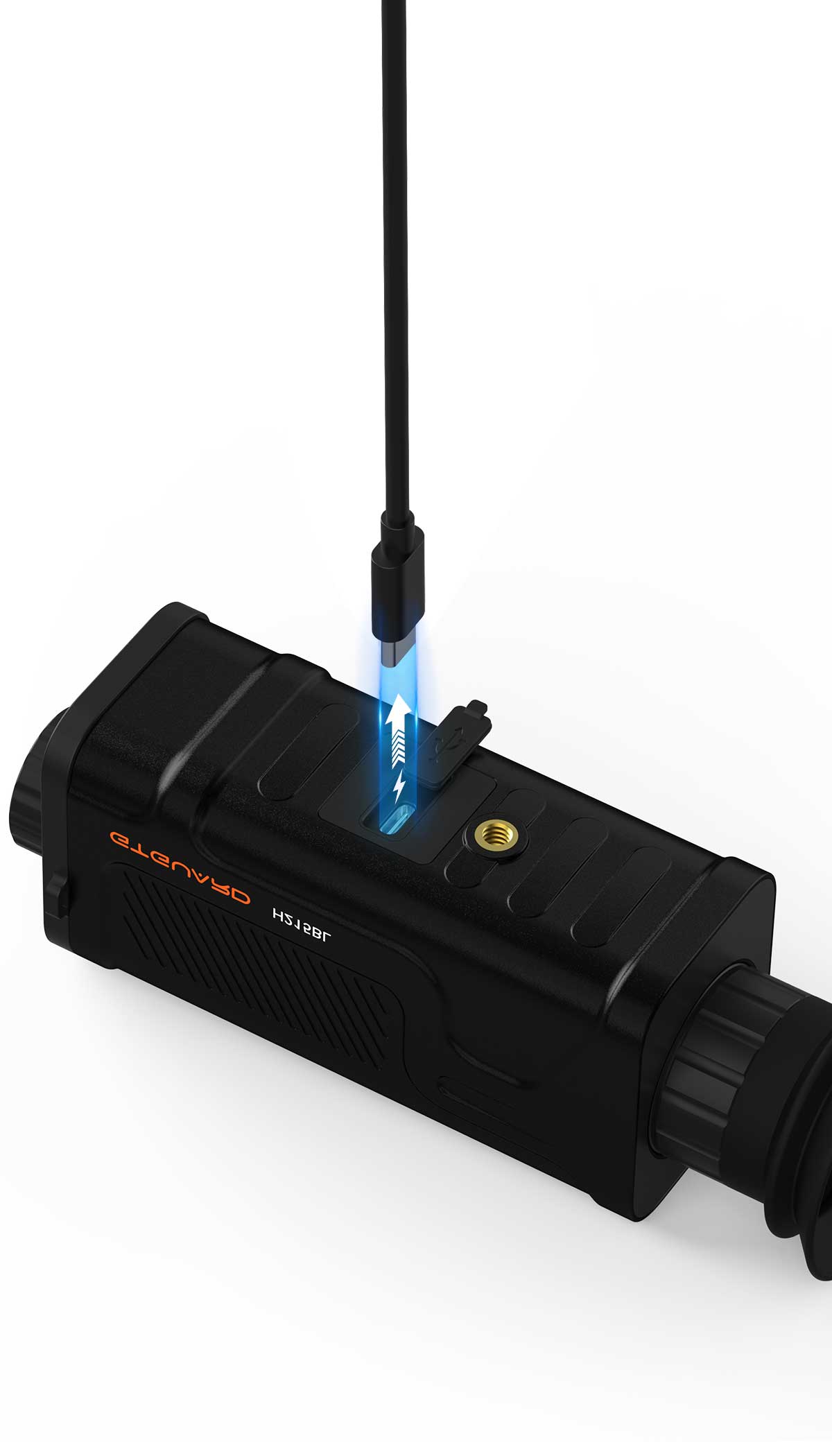

Multi-function Type-C
IP65 waterproof

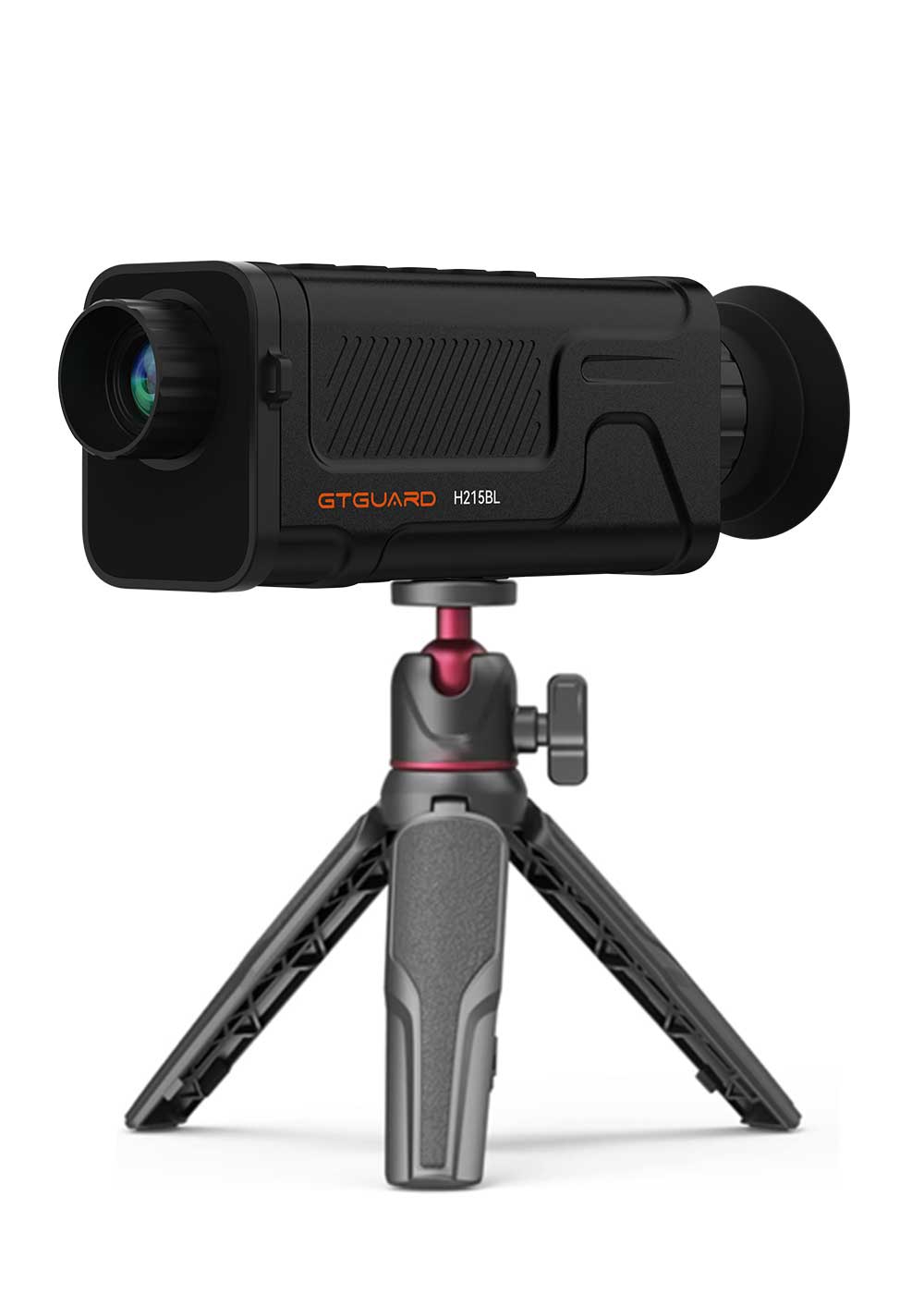

1/4-inch screw hole
USB/OTA Upgrade

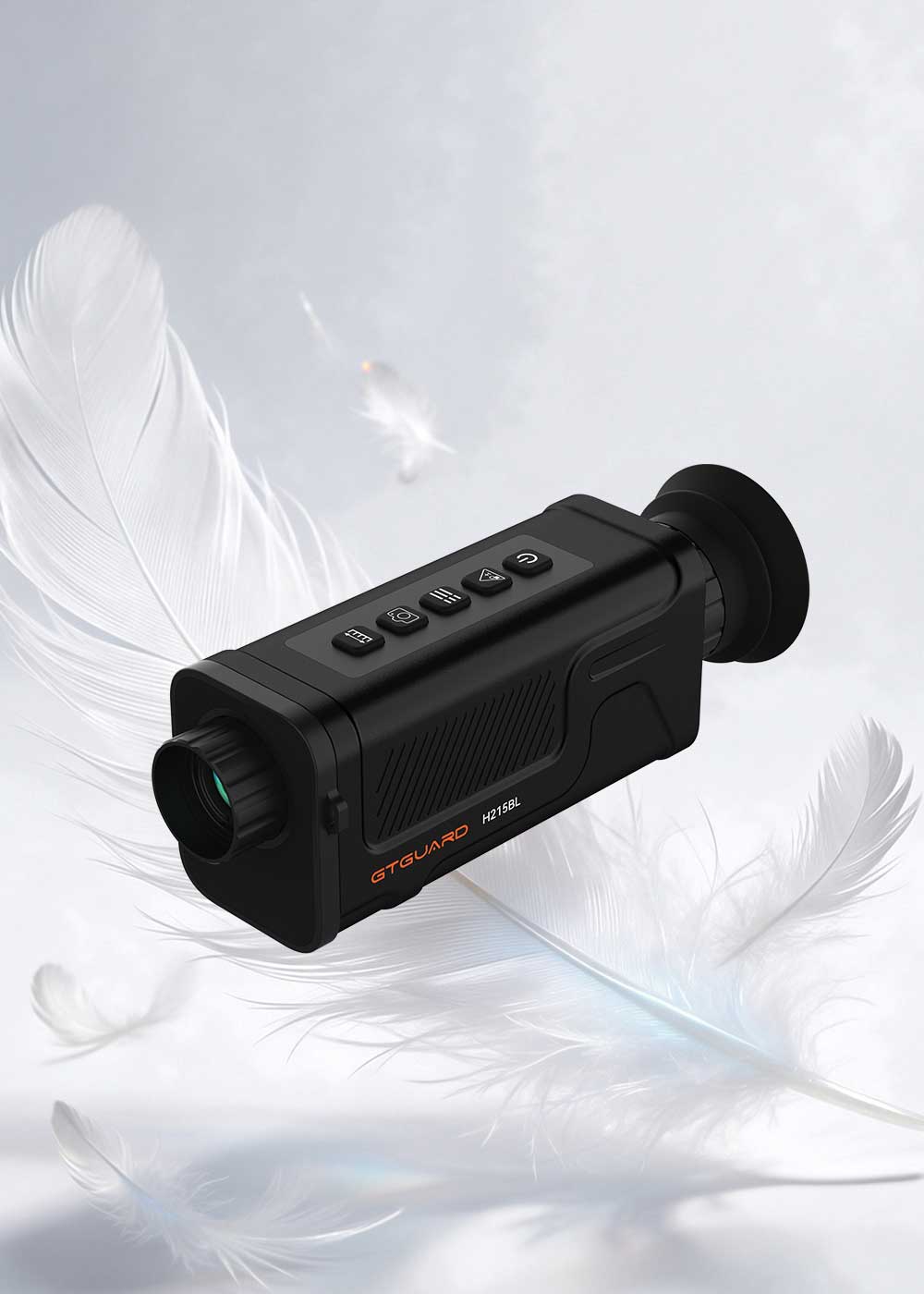

Lightweight
Detector Type: Uncooled VOx (Vanadium Oxide) Infrared Focal Plane Array
Detector Resolution: 256 × 192
Pixel Pitch: 12μm
Spectral Response: 8μm – 14μm
NETD (Thermal Sensitivity): ≤45mK
Lens: 15mm focal length, F/1.0 aperture, 22mm diameter
Field of View: 11.69° × 8.78° (±5%)
Digital Zoom: 1–8×
Diopter Adjustment: -5 to +5
Laser Distance Measurement: Up to 600m, ±1m accuracy
Ranging Modes: Single-Shot / Continuous
Color Palettes: White Hot / Black Hot / Red Hot / Iron Red / Green Hot
Scene Modes: Normal / Outline / City / Forest / Rainforest / Bird Watching
Image Settings: Brightness, Contrast, Sharpness (5 levels each)
Smart Features: Hotspot Tracking, Picture-in-Picture, Crosshair Display, Attitude Display (horizontal angle / pitch angle / compass heading), AI Super Resolution, Digital Detail Enhancement (DDE), Anti-Burn Protection
Image Correction: Out-of-Chip Correction (OOC), Shutter Correction, Non-Uniformity Correction (NUC), Auto Gain Control (AGC)
Recording: Photo & Video Capture
Video Output: CVBS (analog video out, toggled via Mode + Capture button combo)
File Management: Delete & Export Media Files
Internal Storage: 32GB
Connectivity: Wi-Fi (Hotspot / Wi-Fi Mode)

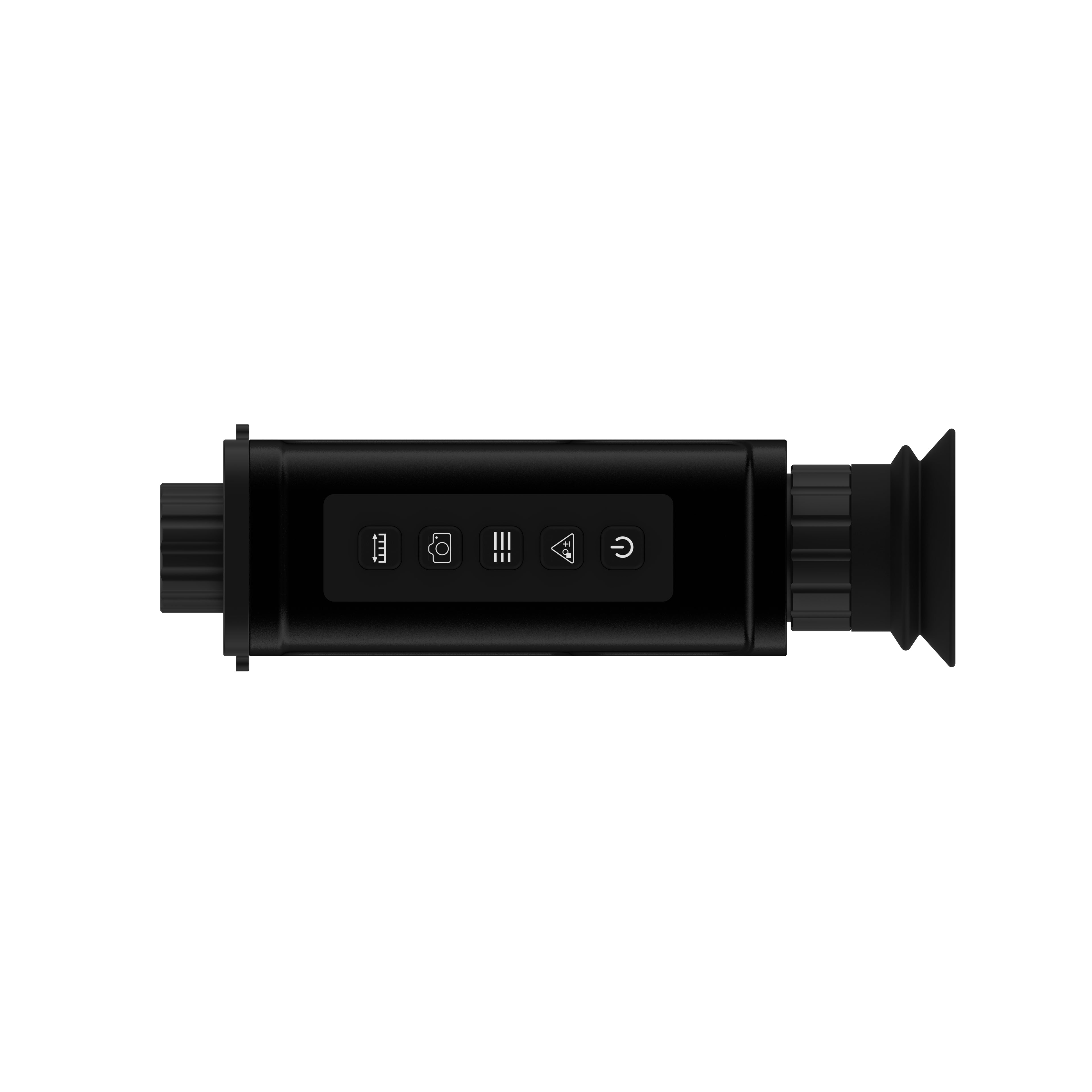

Button Layout: 5 buttons — Power, Zoom, Mode, Capture, Ranging
Battery Type: 3.7V 4000mAh Rechargeable Lithium Battery
Battery Life: ≥10 Hours
Charging / Data Port: USB Type-C
Auto Power-Off: 1 / 3 / 5 / 10 Minutes (idle)
Operating Temperature: -20°C to 60°C
Waterproof Rating: IP65
Motion Sensor: 3-Axis Gyroscope + 3-Axis Accelerometer + 3-Axis Electronic Compass
Mounting Interface: 1/4" Tripod Thread
Housing Material: ABS + PC
Firmware Upgrade: USB / PC Software
System Reset: Factory Reset (restores default settings, language and time)
Firmware Version: On-screen version display
Supported Languages: Simplified Chinese, English, Spanish, French, German, Italian, Portuguese, Brazilian Portuguese, Russian, Polish, Indonesian, Hungarian, Czech, Slovak, Romanian
